etc-nand
You can click the PCB images to switch to the other side.
Overview
etc-nand is a real-world ETC.A CPU built from almost only quad NAND gate ICs (74hc00)
It will probably be finished in a few months.
Estimates
Estimated gate count:
- 2800 NAND gates
- 320 tristate buffers
Estimated component counts:
- 700x 74hc00 quad NAND gates
- 40x 74HC54 octal tristate buffers
- a few simple resistors
Planned Specifications
ETC.A base instruction set + byte operations + S&F + Von Neumann
The CPU will communicate with peripherals over a 16 bit data + 15 bit address memory bus
Purchase
You will be able to purchase one in the future.
Stay tuned!
Images

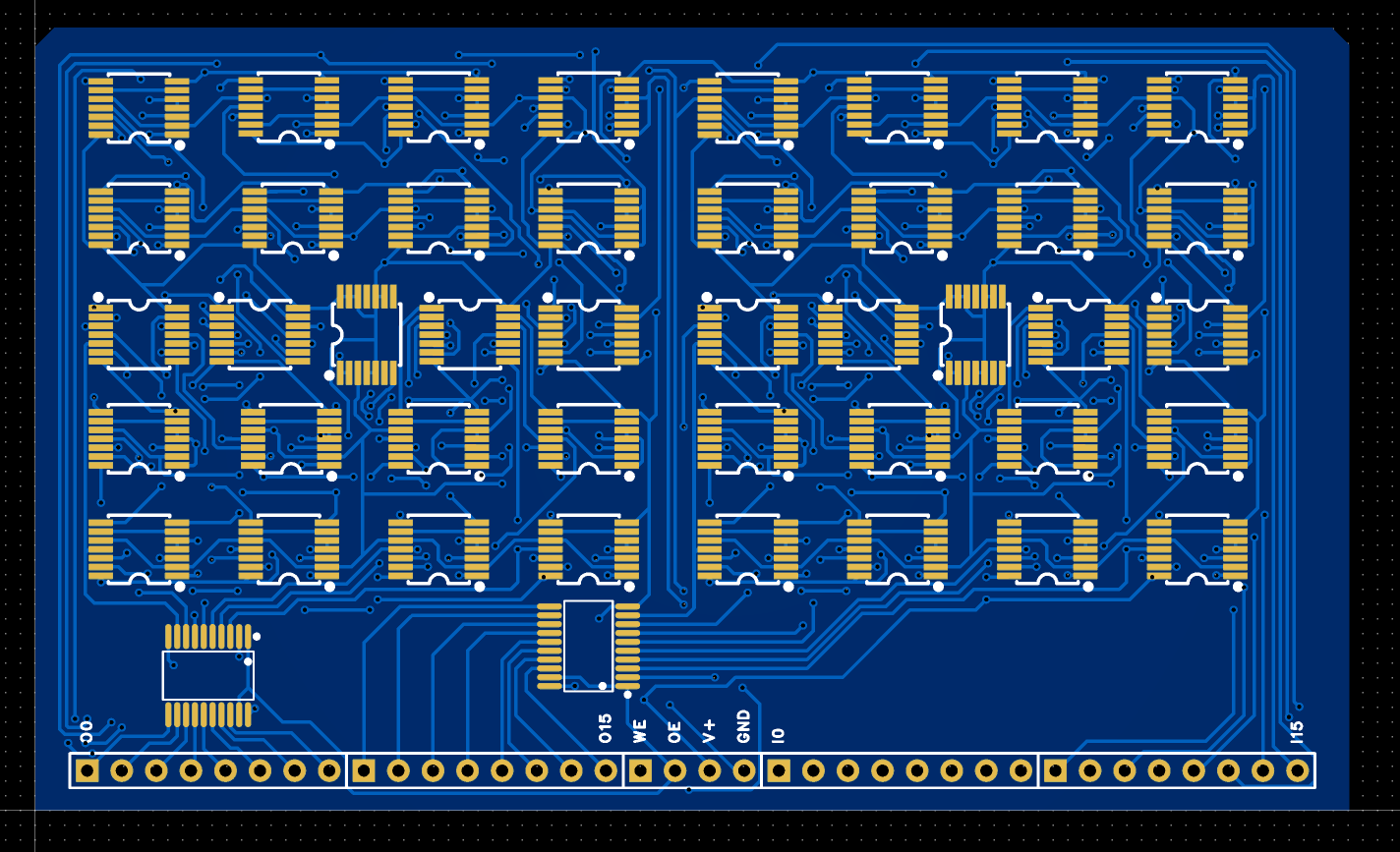

Images of PCBs that are either already manifactured or currently beeing manifactured by JLCPCB.16 bit register

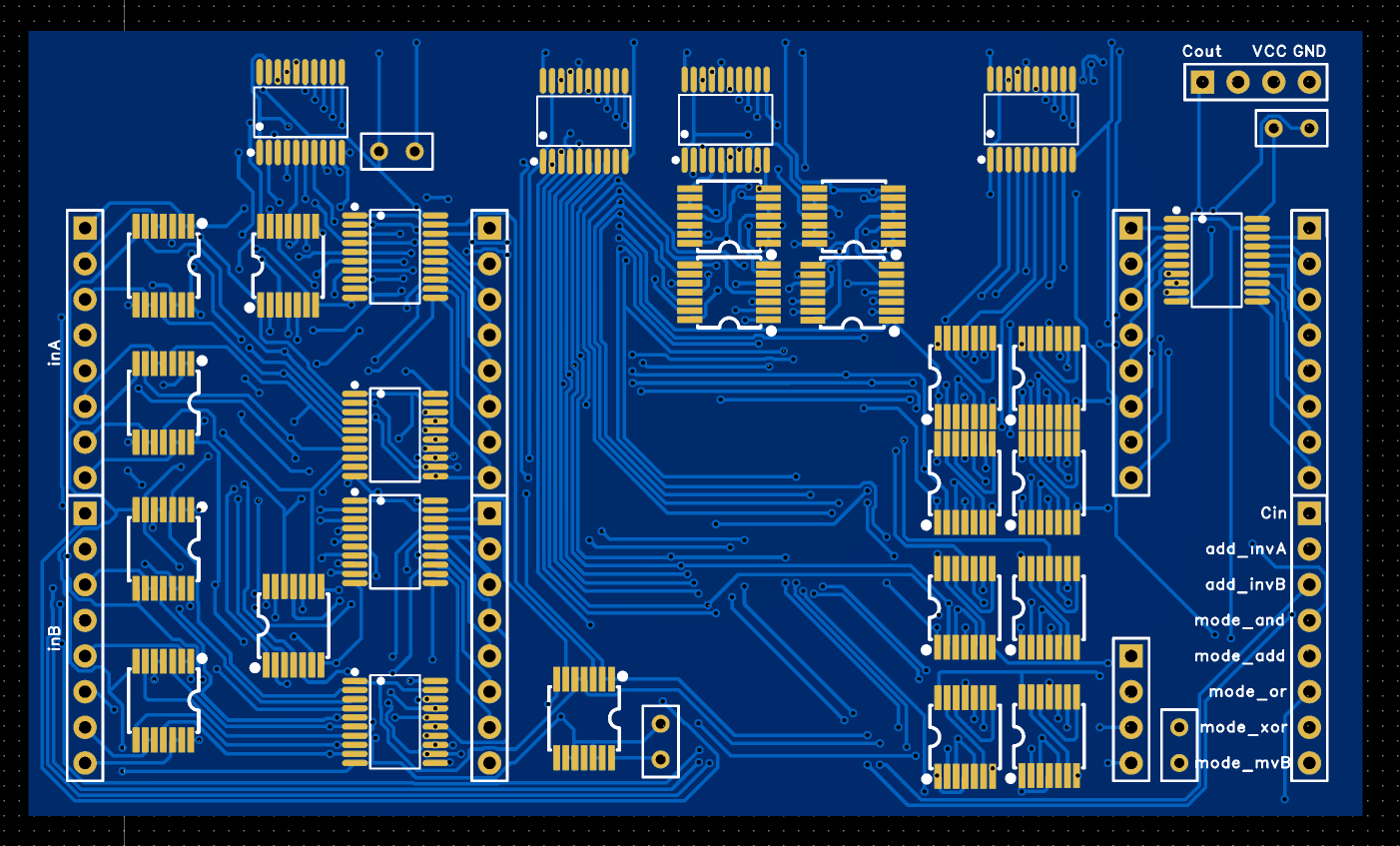

8 bit ALU slice
A 8 bit adder module will be placed in the middle

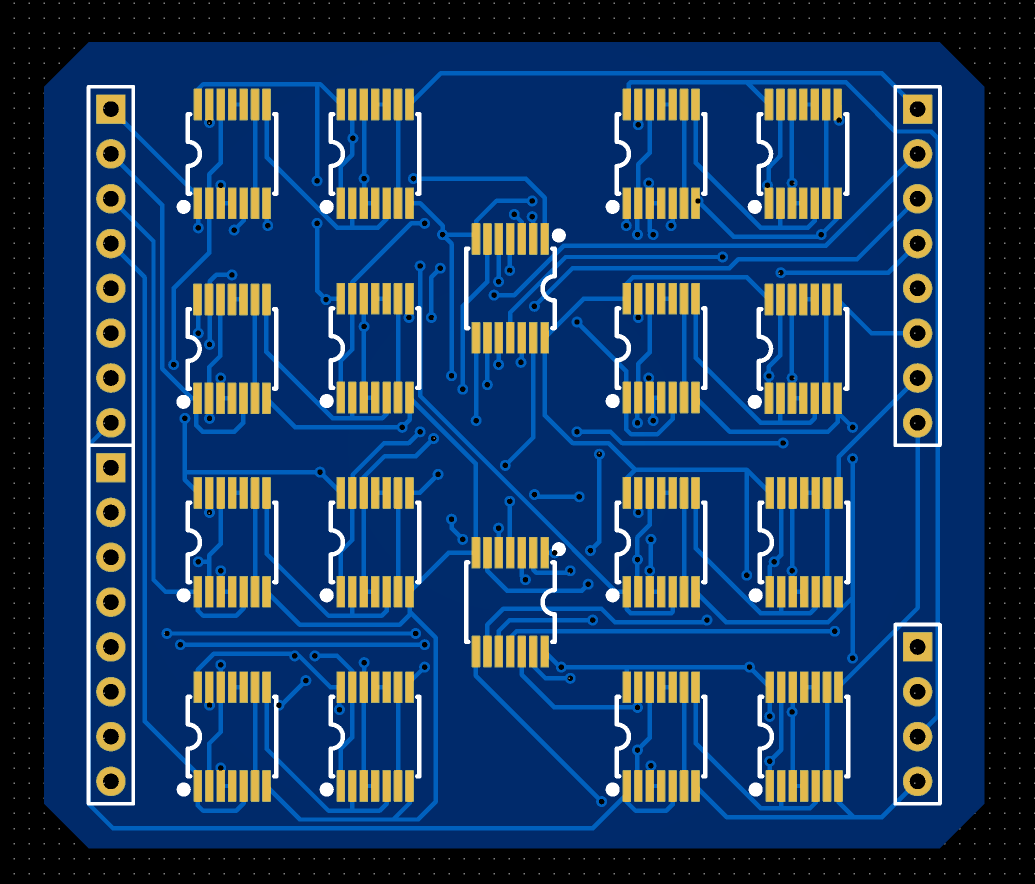

8 bit adder
